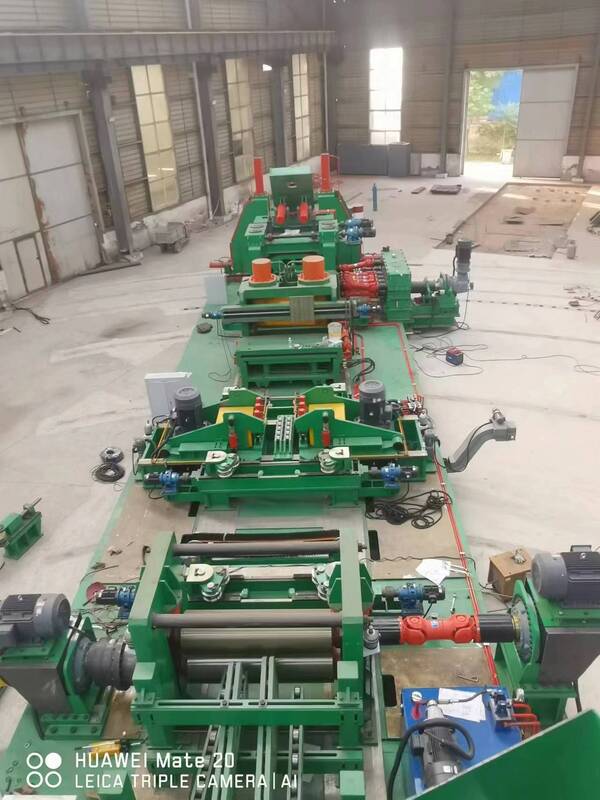

This 1220mm Spiral Pipe Machine has just finished being refurbished on our factory.  It's ready for shipment immediately.
This machine can produce spiral welded pipes of diameter range φ219 to φ1220mm and wall thickness range 4.0mm to 12mm.

General Specifications:
Machine Model: LH750-1220-12
Coil width: 400- 750 mm
Pipe diameter range: Φ219-1220mm
Wall thickness range: 4-12 mm
Pipe length: 8-12 m

Equipment list:  Uncoiler; Pinch and leveler;  Shearing and butt welding; Vertical roller; Rotate shear; Delivery machine; Guiding beam; Forming machine; Front bridge; Inner welding device; Outer welding device; Rear bridge
;Centering device; Plasma cutting device; Embedded parts; Hydraulic system; Electrical control system

Since refurbished equipment is more cost-effective than purchasing new ones, and it can also save time for the buyer, quickly transport to the destination and put into production. This refurbished spiral pipe machine can be a good choice to start a business or investment.
It gives a perfect solution as it provides the customer fast delivery, good quality and low price at the same time.
Contact yang.wang@huaye.us for more information.

This 3200mm spiral pipe machine has been officially put into production and the pipes have been successfully discharged in Henan,China. It can make spiral pipes of diameter range φ508 to φ3200mm and wall thickness range 6mm to 25 mm.
Firecrackers were fired at the opening ceremony, both customers and our installation workers were present to celebrate. Congratulations on the successful commissioning and pipe making!

General specification:
Plate width: 800-2000 mm
Pipe diameter range: Φ508-3200mm
Wall thickness range: 6-25 mm
Pipe length: 8-15 m

Production Flow:
Uncoiler –Pinch and leveler – Guide rollers – Plasma cutter – End welder – guide rollers – Edge mill – Guide roller – Delivery machine – Pre-bending/guide beam – Forming machine – ID welding – OD welding – Plasma cut-off – pipe discharge

The completion of this project is another perfect performance of Huaye. We will continue to work hard to provide good after-sales service to our customers.
Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe mill project.

This 1620mm End facing and beveling machine which is being processed is designed and manufactured by us recently.It is capable of machining ends of pipes with outside diameter ranging from Φ400 to Φ1620mm, and wall thickness ranging from 6 to 16mm.
Pipe beveling Machine are used to create beveled edges on pipes and commonly used in oil, gas industries,  building, and construction. Ours are known for their durability, efficiency, and cost-effectiveness.

General specifications:
Pipe O.D.: Φ400～Φ1620 mm
Pipe wall thickness: 6～16 mm
Pipe length: 8-12 m
Head arrangement: opposite head arrangement

​Please contact yang.wang@huaye.us if any further interest regarding the pipe beveling machine project.

​This filter pipe spiral pipe mill is HUAYE's featured production line that specifically designed and built for a customer in Shanghai, China.
Please CLICK READ MORE to view more details, for inquiry or any other questions,contact yang.wang@huaye.us.

This 3200mm spiral pipe machine finishded the installation and commissioning in Henan, China. It can make spiral pipes of diameter range φ508 to φ3200mm and wall thickness range 6mm to 25 mm.
Our engineers and workers successfully completed all work at site and it will start production from now on. We have gained great satisfaction from our customers.

General specification:
Plate width: 800-2000 mm
Pipe diameter range: Φ508-3200mm
Wall thickness range: 6-25 mm
Pipe length: 8-15 m

Production Flow:
Uncoiler –Pinch and leveler – Guide rollers – Plasma cutter – End welder – guide rollers – Edge mill – Guide roller – Delivery machine – Pre-bending/guide beam – Forming machine – ID welding – OD welding – Plasma cut-off – pipe discharge
​
Our team has put in a lot of effort on this project and we have achieved good results. We will continue to strive to improve our machine quality and service level to provide better solutions for our clients.
You can always trust our professionalism and after-sales service.
Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe mill project.

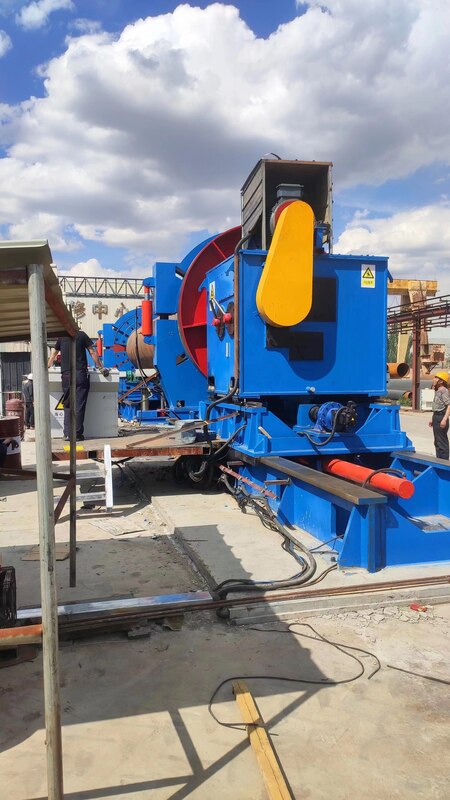

​Congratulations on the successful installation and commissioning of the 2540 End facing and beveling machine!

The pipe end facing and beveling machine is equipment used in pipe post process. End facing refers to the process to machine the pipe end flat and beveling refers to the process to machine the pipe end at a beveled shape for further joint process. Length control is another important function of the end facing and beveling process.

This Pipe beveling machine made by HUAYE is capable of machining ends of pipes with outside diameter ranging fromΦ400 toΦ2540mm, and wall thickness ranging from 6 to 25.4mm.

General Specification:
​Pipe O.D.: Φ400～Φ2540 mm
Pipe wall thickness: 6～25.4 mm
Pipe weight: Max  22 t
Pipe length: 8-18 m

Equipment List:
Base
Machine box
Tool holder
Clamping device
Lift conveyor
Pipe receiver and discharger
Control system
Hydraulic system
Buried embedded parts

Thanks a lot for the hard work our team has put into this project.  We look forward to continuing to deliver successful outcomes for our clients.
Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe mill project.
