1-Over view:
Location: China
Condition: In-line

General Specifications:
Coil material
Strip thickness: 5-16 mm
Strip width: 690-1600mm
Coil O.D.: φ1400-φ2200mm
Coil I.D.: φ675, φ760mm
Coil weight: Max. 35T
Steel pipe
Pipe O.D.: φ219-φ508mm
Pipe wall thickness: 5-16 mm
Pipe length: 8-12 m
Mill Specs
Forming type:  Cage Forming
Mill speed:   10 - 14m/min
H.F. Welder: 1200KW

Equipment list:
1- Uncoiler
1- Peeler
1-Leveling machine
1-Shear and butt-welding machine
1-Loop accumulator
1-Leveling machine
1-Edge miller
1-Delivery machine
1-Forming machine
1-H.F. Induction Welder
1-M.F. Seam annealing machine
1-Air cooling conveyor
1-Water cooling tank
1-Sizing machine
1-Turks head
1-Flying cut Saw
Hydraulic system
Electrical Control system
Roller
Φ508×16 Beveling machine
Φ508 HydroTester

Equipment price:
Email for Pricing: yang.wang@huaye.usdit.to edit.

Overview:
This is a front swing type spiral pipe mill, producing diameter range Φ508mm to 3220mm and wall thickness range 5 mm to 18mm.
Manufactured in 2020, but unused after installation, almost new.

Background:
Year: 2020
Location: China

General Specifications：
Coil Specification
Coil width: 600～1500 mm
Coil thickness: 5～18.0  mm
Material: Q235
Max. coil weight: 30T

Product pipe specification
Pipe O.D.：Φ508～Φ3220 mm
Pipe wall thickness: 5～18.0 mm
Pipe length: 8～18 m

Mill Specification
Forming method: 3 rolls bending forming，Out control roll sizing
Welding speed: 0.5 – 2.0m/min

Equipment list:
1- Double cones uncoiler
1- Peeler and straight head
1- ​3-Rolls leveling machine
2- Hydraulic vertical roller
1- Cutting and butt welding
1- 5-Rolls leveling machine
1- Delivery machine
1- Guide beam
1- Frontal bridge
1- Forming machine
1- Inner welding device
1- Outer welding device
1- Flying cutting cart
1- Rear bridge
1- Pipe dropper
1- Buried parts
1- Hydraulic system
1- Electrical system
1- Welder DC1000
1- Plasma cutting power
1- ​X ray testing machine

Equipment price:
Ask price:  yang.wang@huaye.us.

 Overview:

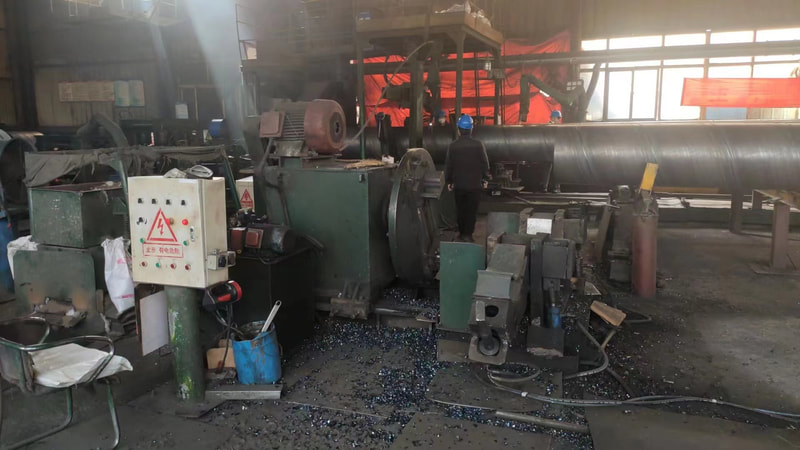

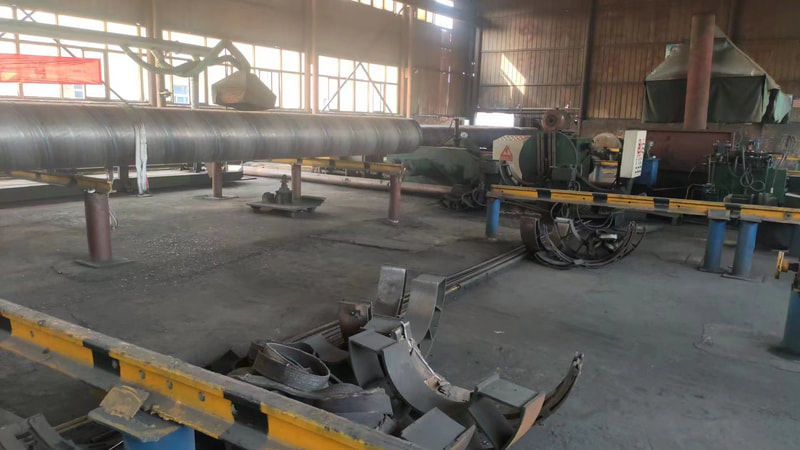

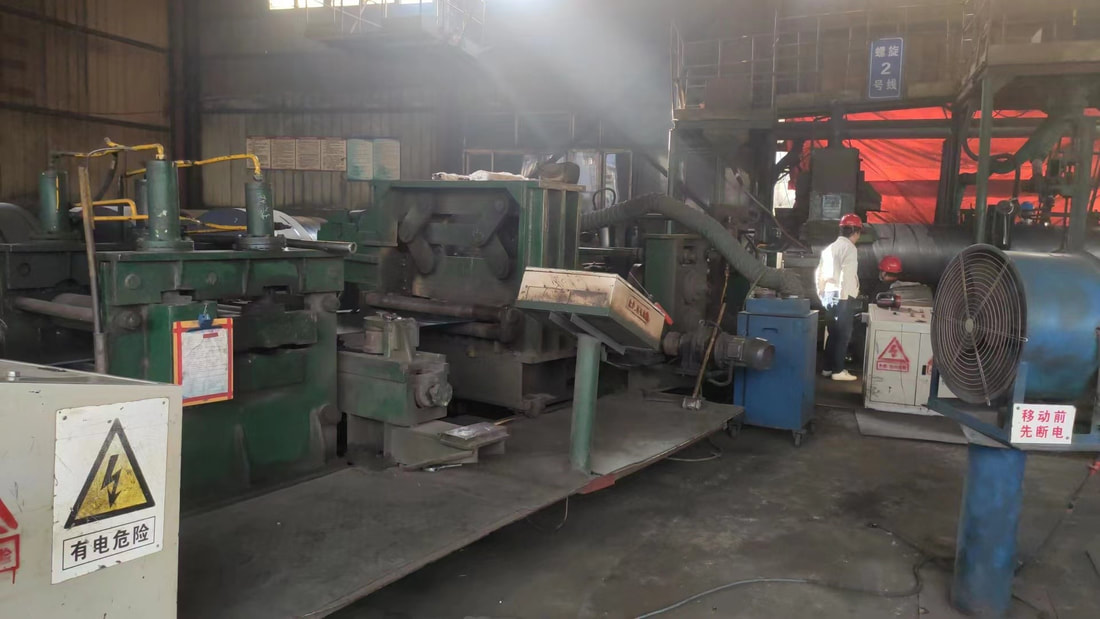

A spiral pipe mill is a series of machines used to roll steel strips by a certain angle and produce spiral welded pipes.
This is a front swing type spiral pipe mill, Model LH750-820-10, producing diameter range Φ219mm to Φ820mm and wall thickness range 3 mm to 10 mm.

General Specifications：
Coil Specification
Coil width: 400～750mm
Coil thickness: 3～10  mm
Material: Q235
Max. coil weight: 20T

Product pipe specification
Pipe O.D.：Φ219～Φ820 mm
Pipe wall thickness: 3～10mm
Pipe length: 8～12 m

Mill Specification
Welding speed: 1.0-2.2m/min
Machine type:Frontal swing and stop during coil changing
Forming type: 3 rolls bending and out control roller sizing

​General Specifications：
Coil Specification
Coil width: 400～750mm
Coil thickness: 3～12  mm
Material: Q235

Product pipe specification
Pipe O.D.：Φ219～Φ1220 mm
Pipe wall thickness: 3～12mm
Pipe length: 8～12 m

Mill Specification
Welding speed: 0.5-2.2m/min
Machine type:Frontal swing and stop during coil changing
Forming type: 3 rolls bending and out control roller sizing

Equipment information:

This Refurbished 630 mm spiral pipe machine was successfully commissioned  and has been finished trial production in Thailand. The machine makes spiral pipes up to 630 mm in diameter and 10mm in thickness.  The machine will be put into official production and start producing pipes from now on.

 General specification:
Max plate width: 750mm
Pipe diameter range: Φ219-630mm
Wall thickness range: 4-10mm

Equipment list: Uncoiler; Peeler ; Roll head straightening; Hydraulic vertical roller; Shear and butt welding device ;roll leveling machine; Delivery machine;Front bridge ;Guide plate ;Forming machine ; Inner welding device ;Outer welding device;Rear bridge ;Center support ;V-gate; Hydraulic system ; Electrical control system

 Huaye is able to design, manufacure and commission the machine  according to your requirements, helping you start a project at a lowest possible investment.

Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe mill project.
