SPIRAL WELDED PIPE MILL
​Introduction
Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder. Large diameter pipes can be produced with narrow steel strip.
​
Spiral welded pipe mill is HUAYE most competitive, most mature technical characteristics product. Product specifications range from Φ25 mm to Φ3400 mm.
Many “FIRST-of-China” fully demonstrated HUAYE’s strong technical advantages and cutting-edge technology research and development capabilities.
  • FIRST of China, spiral pipe mill for aluminum-magnesium alloy.
  • FIRST of China, minimum spiral pipe mill  Φ25-114 for stainless steel.
  • FIRST of China, export spiral pipe mill project  Φ508-1820 (API standard).
  • FIRST of China, massive production of 9 spiral pipe mill in 4 months.
In recent years HUAYE has produced more than 100 sets of spiral pipe mills with different sizes and high investment returns.
The machines have been exported to over 20 other countries and broke the dominant position of the western countries in these area.
Production Flow
Uncoiler
Leveler
Pre-bending
V-gate and support
Head straightener
Edge miller/trimmer and vertical roller
Forming machine
Plasma cut-off
End cutter/shear and welder
Deliver machine
ID & OD welding
Pipe drop-off
Machine Model
Customization design available as per request

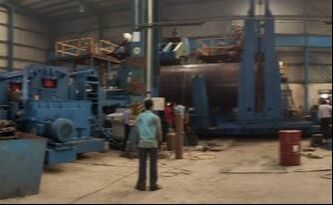

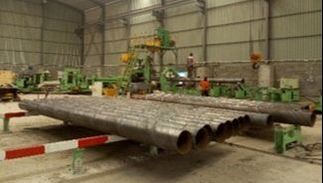

Product Presentation
LH600/800 series
LH600-630-5 Shandong, China
LH600-630-8 Taiyuan, China
LH800-1220-12 Shandong, China
LH1050/1250 series
LH1250-820-12 Morocco
LH1250-1220-14 Shandong, China
LH1050-1220-12 Libya
LH1550/2000series
LH1550-1620-16 ​Inner Mongolia, China
LH2000-2540-25 India
LH2000-3200-25 Cangzhou, China
​Customized Spiral Pipe Mill
​Large OD thin wall SPM
​Continuous production, rear swing type SPM
​SPM with puncher
​Mini Spiral Pipe Mill
​Reinforced wall SPM
Auxilary Equipment for Pipe Production
End-facing&beveling machine
Pipe handling system
Pipe end expander
Hydro-static tester
Pipe handling system
ID/OD weld seam grinder
UT (Ultrasonic tester)
Flux processing system

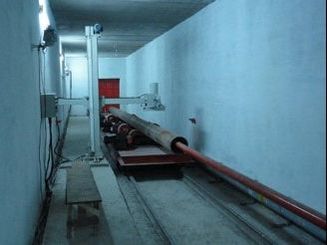

X-ray tester
