4 Sets of Used ERW Tube Mill for Sale

11/7/2022

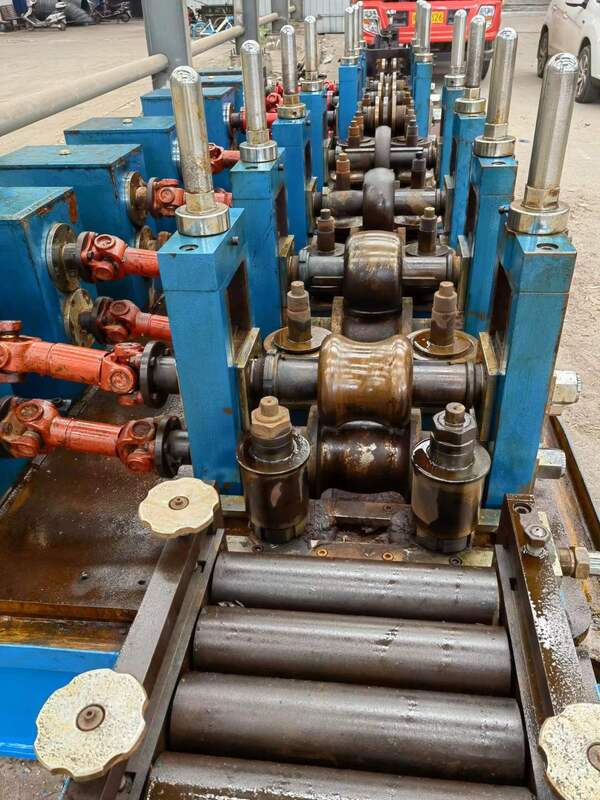

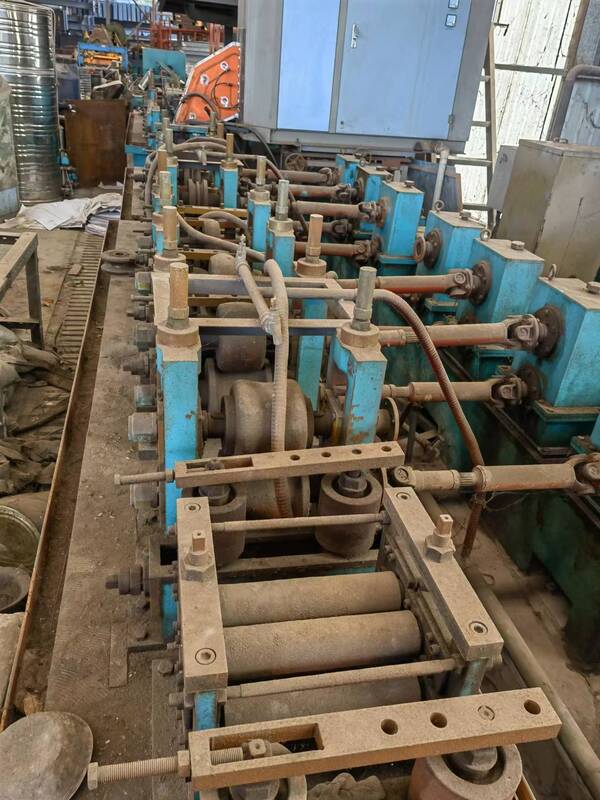

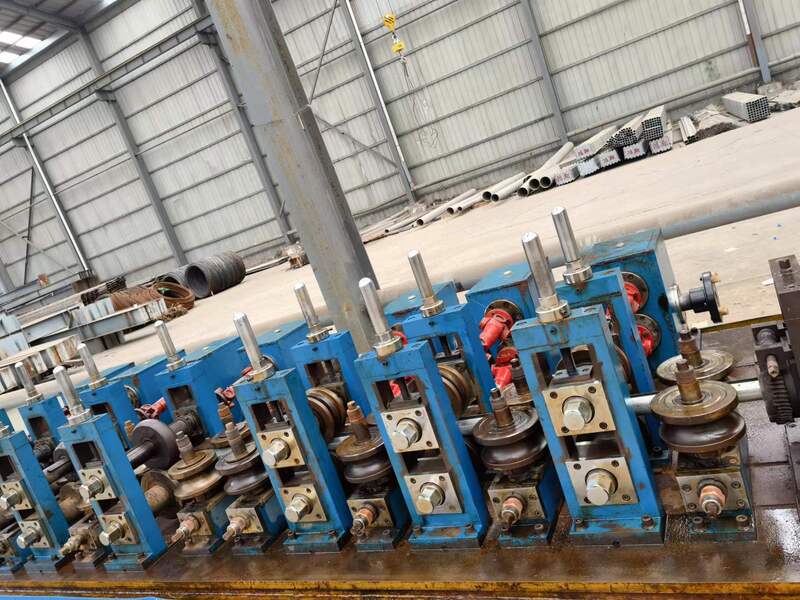

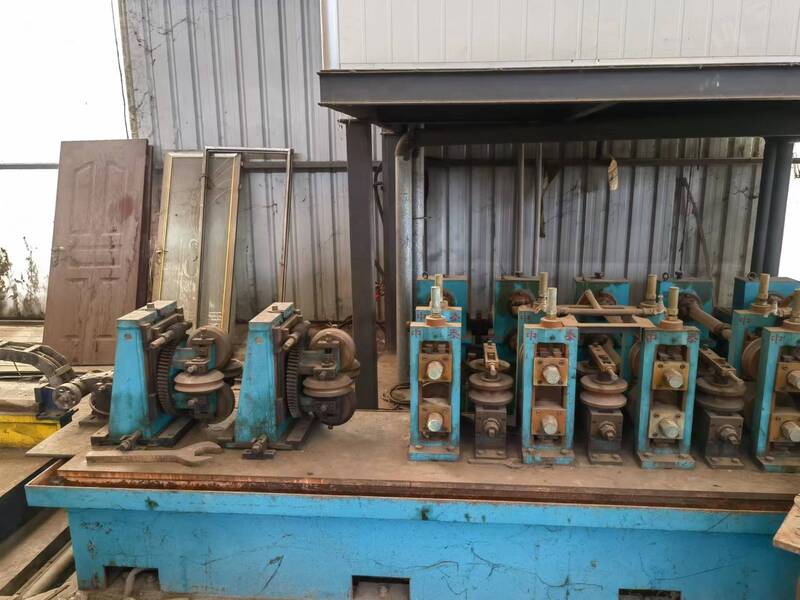

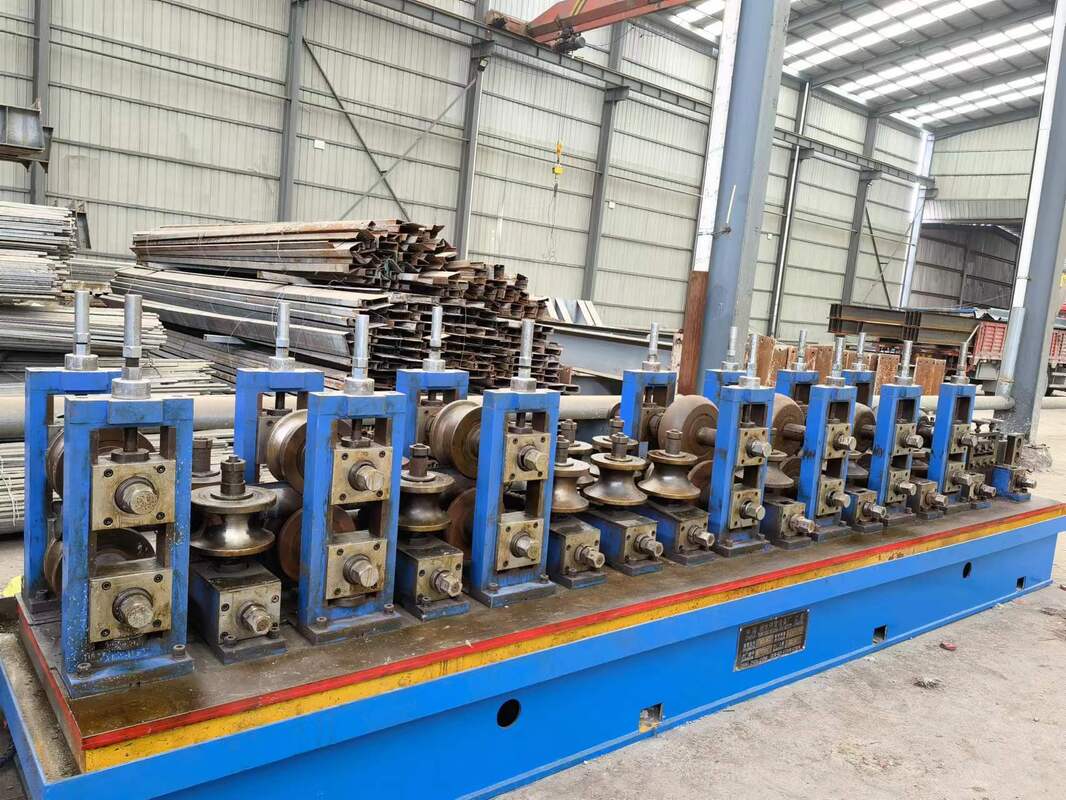

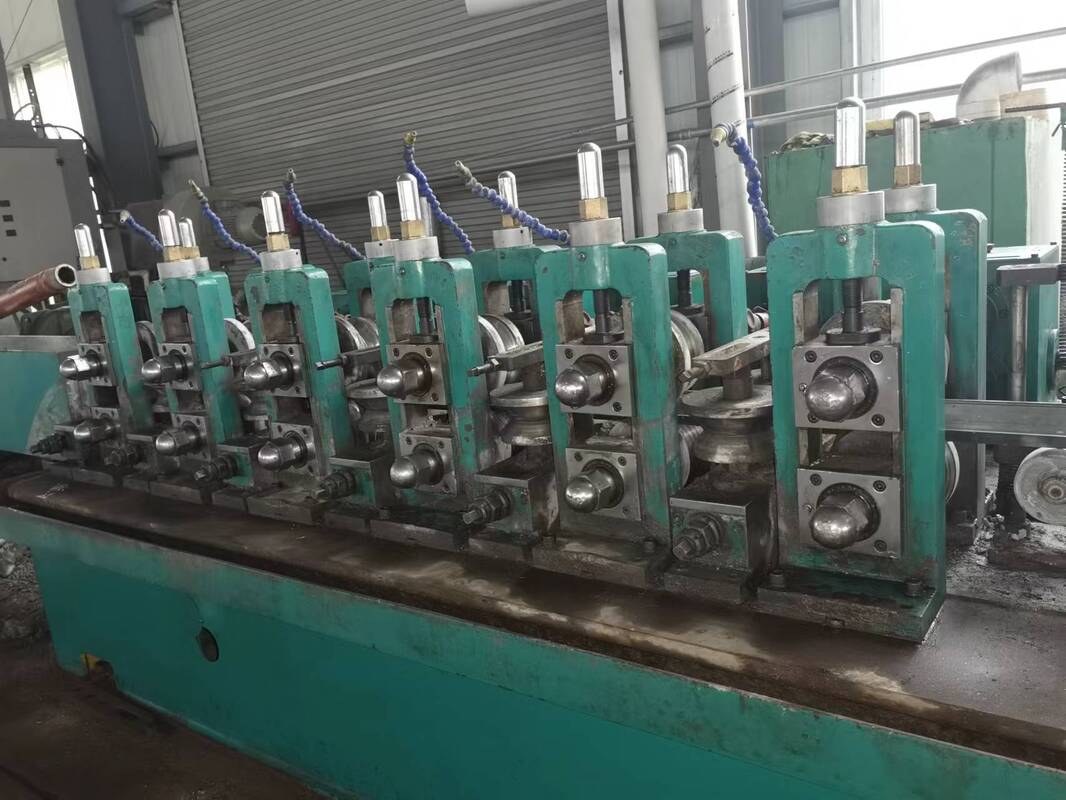

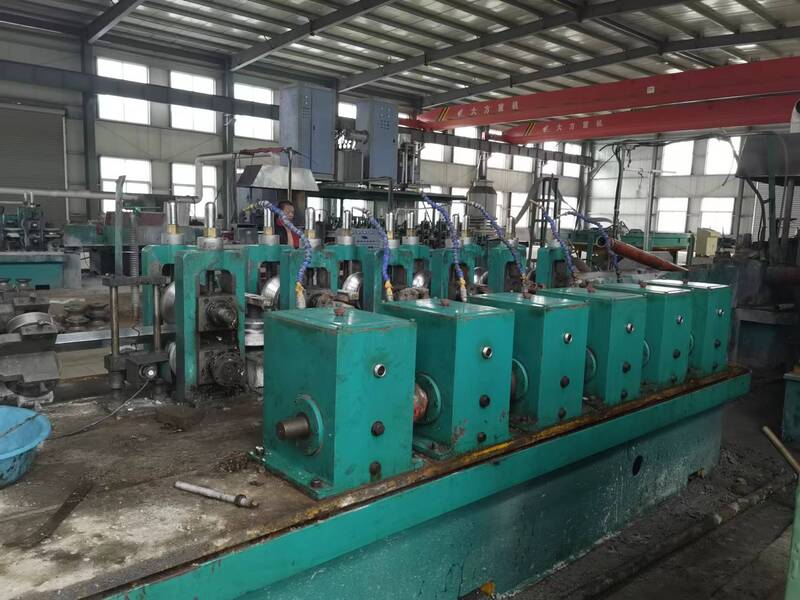

1. Used 76k117 HF ERW Tube Mill
Overview:
Maker: Yangzhou China
Year: 2018
Pipe O.D.:48-127mm
Pipe Thickness：1.5-4mm (Round) 1.2-3mm (Square and rectangular)
Forming machine: 200KW motor power, 315 reducer, Spindle: Φ80mm; V. shaft: Φ50mm; Arrangement (7H6V):
Double cone uncoiler;
Hydraulic shear and butt welding machine;
Cage type accumulator: 8*5m
Roller: 40*80/50*100/80*80
Solid HF welding machine: LongPeng 200KW Solid state (Sifangsanyi 300KW Available)
Flying saw: Conte

2. Used HF ERW Tube Mill_60mm
Overview:
Maker: Yangzhou China
Pipe O.D.:25-102mm
Pipe Thickness：1-3mm (Round) 1-2.5mm (Square and rectangular)
Production direction: Left feeding
Forming machine: Spindle: Φ65mm; V. shaft: Φ40mm;
Round Tube Roller: 48mm
Solid HF welding machine: Tenyes 200KW Solid state

3. Used 50k76 HF ERW Tube Mill
Overview:
Maker: Zhongtai, Shijiazhuang China; Year: 2018
Pipe O.D.:18-76mm
Pipe Thickness：1-2.75mm (Round) 1-2.2mm (Square and rectangular)
Production direction: Right feeding
Forming machine: Spindle: Φ55mm; V. shaft: Φ35mm;
Round Tube Roller: 48mm/76mm
Solid HF welding machine: Sifangsanyi 200KW Solid state

4. Used 50k76 HF ERW Tube Mill
Overview:
Maker: Nanyang ,Yangzhou China; Year: 2018
Pipe O.D.:18-76mm
Pipe Thickness：1-2.75mm (Round) 1-2.2mm (Square and rectangular)
Production direction: Left feeding
Forming machine: 185KW motor power; Spindle: Φ60mm; V. shaft: Φ35mm;
Tube Roller: 40*40/40*60
Solid HF welding machine: Sifangsanyi 200KW Solid state
Flying saw: Shengtong

Equipment price:
Ask price: yang.wang@huaye.us.

2 Comments

Spiral Pipe Production Plant of GB-9710 (API-5L/5CT standard)

11/1/2022

2 Comments

Introduction:
Spiral Pipe Production Plant of GB-9710 (API-5L/5CT standard) can be used to produce oil and gas steel pipes. According to API standards, the material of the equipment is usually higher (X52, X60, X70, X80).

Factories require to have very complete machinery setup in order to be certified a API standard factory.

The Producton line includes spiral pipe mill section, end facing and beveling machine, hydrostatic tester, X-ray flaw detection, online and offline ultrasonic flaw detection, weld grinding machine, pipe expander, weighing and length measuring equipment, finishing equipment.

Whole equipment Including：

Spiral welded pipe mill Section.

Coil feeding section
  Uncoiler
  Pinch and leveler
  Coil end cutter and joint welder
  Edge miller
  Plate surface cleaner
  Delivery machine
  Pre bending and guiding beam
    Forming machine
  Rear bridge
  Flying plasma cutter

End Facing and Beveling Machine .

Hydrostatic Tester.

X-ray Testing Detector
Ultrasonic flaw detection(online and offline )
Pipe Expander.

Other finishing area equipment.

Including conveyor, pipe ejector, rack, slag cleacning machine, rotate roller, weighing equipment, etc.

In case interested in a similar line, please contact yang.wang@huaye.us
