This video shows the successful production of the first pipe with a specification of 1220×10×12 m. This marks that our spiral welded pipe mill has successfully completed the commissioning work.  This is the result of hard work and collaboration of every HUAYE team member.

This 3220mm spiral pipe machine will be officially put into production from now on. It can make spiral pipes of diameter range φ508 to φ3220mm and wall thickness range 6mm to 20 mm.

General specification:
Plate width: 600-1500 mm
Pipe diameter range: Φ508-3220mm
Wall thickness range: 6-20 mm
Pipe length: 8-15 m

Production Flow:
Uncoiler –Pinch and leveler – Guide rollers – Plasma cutter – End welder – guide rollers – Edge mill – Guide roller – Delivery machine – Pre-bending/guide beam – Forming machine – ID welding – OD welding – Plasma cut-off – pipe discharge

The completion of this project is another perfect performance of Huaye. We will continue to work hard to provide good after-sales service to our customers.
Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe mill project.

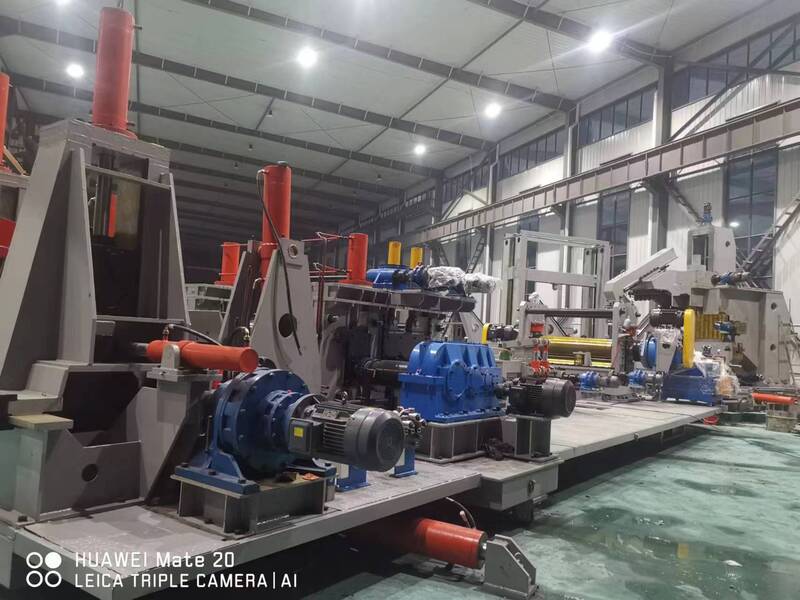

We are pleased to introduce to you the HF ERW Tube Mill that we have installed and commissioned in Azerbaijan. This project was completed by our company's team of engineers together with customers. Thanks for their support and cooperation.

General Specifications:
Pipe O.D.:  Φ89-Φ168mm
Pipe thickness : 1.5-6.0mm(Round tube)
Pipe thickness:  1.5-5.0mm(Square tube)
Mill speed: 20-50m/min
Coil material: Hot roll/cold roll carbon steel
Coil sheet width: 280-530mm

Process flow:
Loading → Uncoiler → Pinch and Leveler → End shear and butt welder → Accumulator → Forming → HF welding → Cooling → Sizing → Milling saw / Flying cutter → Run out

This ERW tube mill underwent a series of rigorous tests and adjustments during installation and commissioning to ensure its stability and efficiency. Our team of engineers also provides training to ensure that local operators are proficient in operating and maintaining the machine.

We are proud to provide advanced technology and equipment to the welded pipe industry in Azerbaijan.
If you have any further questions or needs, please feel free to contact us yang.wang@huaye.us.
