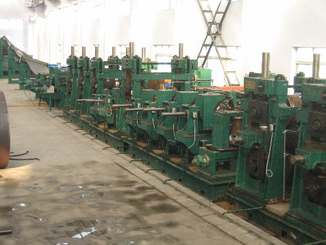

ERW Tube Mill & Pipe Mill Introduction
1.Product Introduction ERW pipe mills is a characterized product of HUAYE that are developed through years of research to combine the advanced knowledge and technology of the market.
The main product includes high-level steel casing and tubing pipe mill, structure pipe mill, fluid transfer pipe mill, and small dia. thick wall pipe mill. HUAYE has an experienced team with strong technical skill and knowledge. Through years of hard work, HUAYE’s ERW pipe mill has occupied the market of more than 20 provinces of China and was exported to Korea, Mexico, Thailand, Uzbekistan, Kazakhstan etc. HUAYE ERW pipe mill were highly received by customers from China and over the world.
2. Function
This pipe is used especially for Petroleum ,Natural gas ,City gas ,Pipe network ,Chemical industry, Electricity ,Steel truss ,Water and Gas pipeline ;it is widely used for a variety of pressure pipelines . 3.Process flow
Feed - uncoil - straighten - shear and buttweld - loop storage - form - HF welder - IF anneal - cool - size -cut - output - end bevel - hydraulic test - collect .
4. Machine parts in the working line:
1) Uncoiler 2) Hoop cage or Horizontal Accumulator 3) Main Machine: a) Forming Machine b) Roller System of Forming c) Seam Guide d) High Frequency Induction Welding Machine e) Roller System for Moving f) Burr Removing Frame (Inside and outside Burr ) g) Water Cooling System h) Sizing Machine i) Roller System of Leveling j) Speed Testing Wheel k) Turkish Frame 4) Auto Flying Saw Controlled by Computer 5) Run out table 6) Electric Control Equipment 7) High Frequency Welding Machine 5. Models and Specs.
Technical Specification
Project Reference
Sample Drawing
Auxilary Equipment for Pipe Production
Achievement
