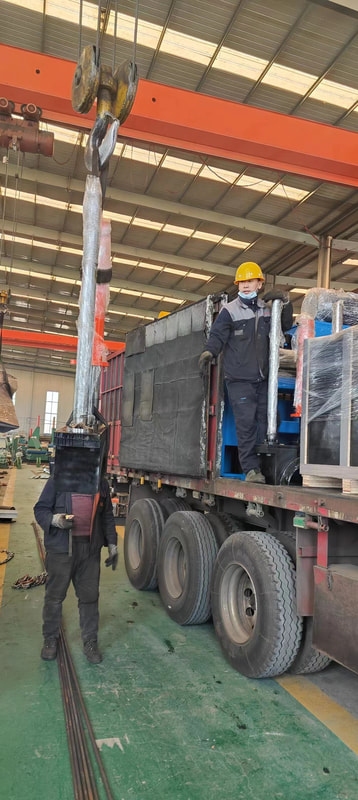

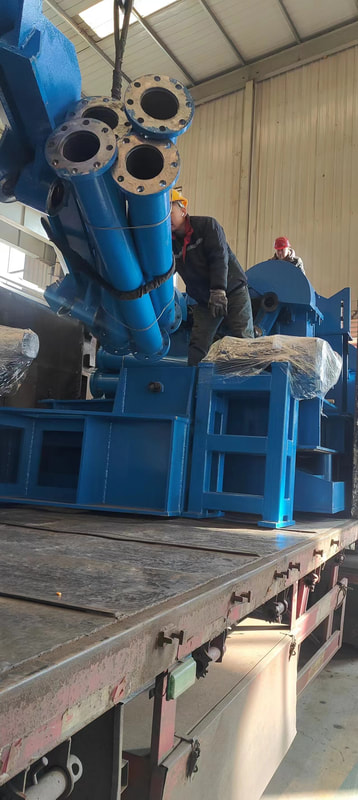

This pipe end facing and beveling machine was completed and finished test running in our factory. Staggered arrangement type, used for machining plane and groove of the two ends of steel pipes.  It has just been packed and sent to the port for shipping.

General Specifications:
Pipe O.D.: φ219-φ460 mm
Pipe Wall thickness:  4-10 mm
Pipe length: 6-10m

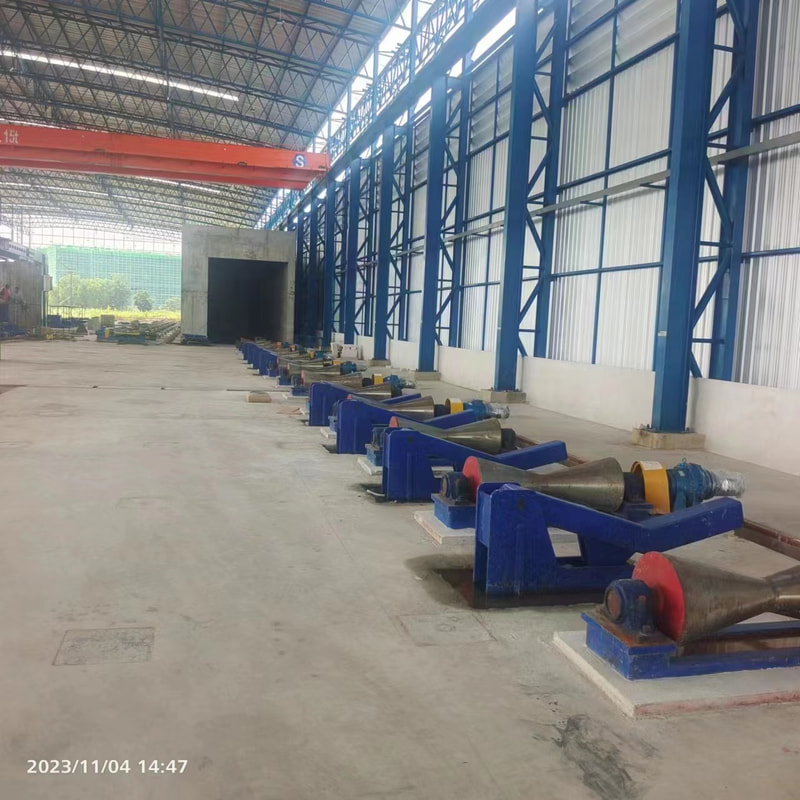

Process flow:
Step beam kicks pipe to carry roller – Carry roller rotates to align the pipe - Step beam kicks the pipe into clamping from carry roller, meanwhile second pipe is kicked to carry roller by step beam - Clamp - Fast feed - Tool disc rotate - Switch to slow feeding - Bevelling and facing - Fast Retreat - Tool disc stop rotate - Open clamp – Step beam kicks first pipe into carry roller and kicks second pipe into clamp - Second pipe start beveling - Same procedure for processing the other pipe end.

Equipment list:
Machine box
Align support roller
Step beam
Electrical control system
Hydraulic system
Clamping mould

Contact us if you have interest in a similar one. Yang.wang@huaye.us

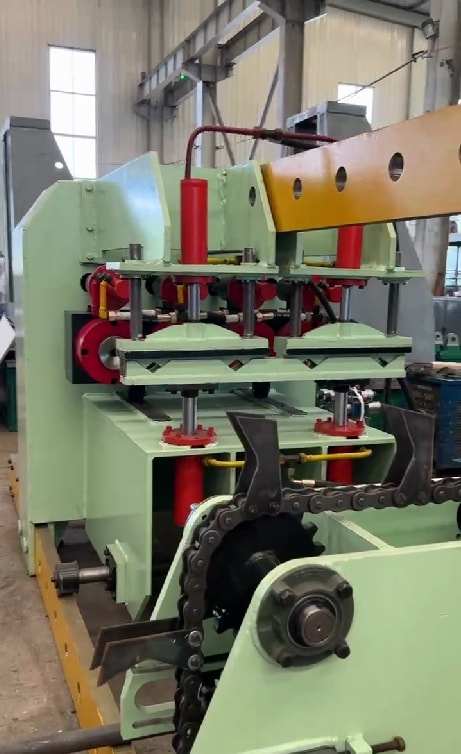

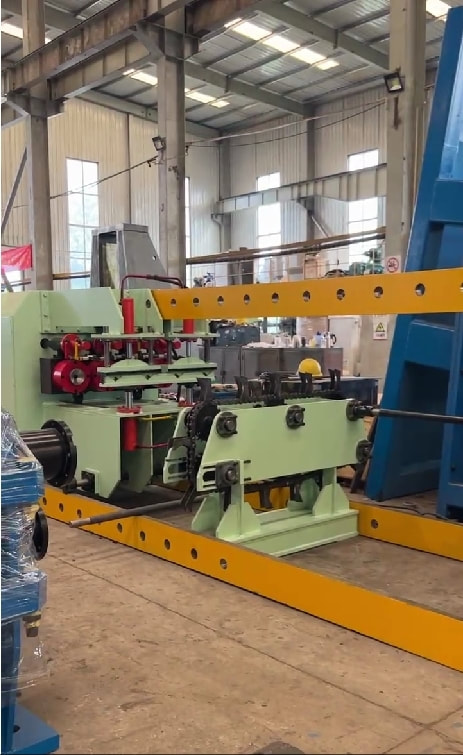

This is a 4 position fully automatic hydrostatic tester made by HUAYE for our Indian customer.

It's for ERW tubes of diameter ranging from 21 mm to 89 mm. Four pipes can be tested in one round, greatly raised the production capacity. This type of hydrotester is usually used in ERW pipe factories to match up the production of the ERW pipe mill.

General Specifications:
Pipe diameter:   Ф21～Ф89 mm
Pipe Wall thickness:   2– 4.0 mm
Test station:    4 stations
Sealing type:   Outside radial sealing
Pressure maintaining time:    5 - 10 s
Max. testing pressure (water):  max 10 Mpa

HUAYE has rich and deep technical accumulation to design various types of hydrostatic tester for the customer. We can provide satisfying solution at most budgetary price.  Pls contact yang.wang@huaye.us for more information.
