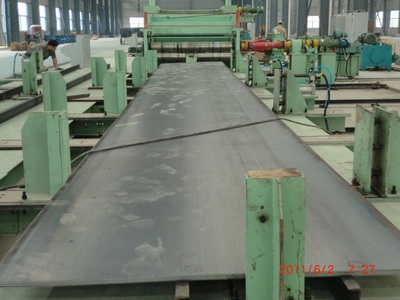

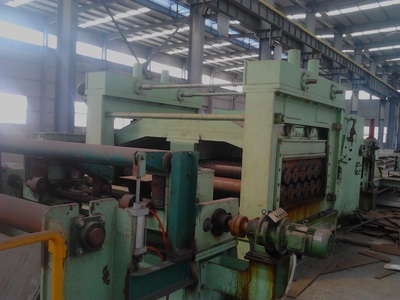

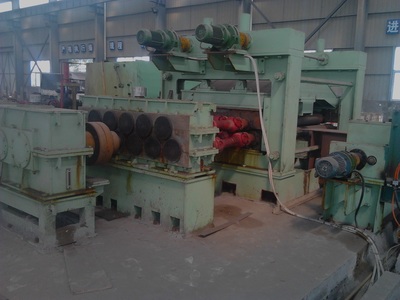

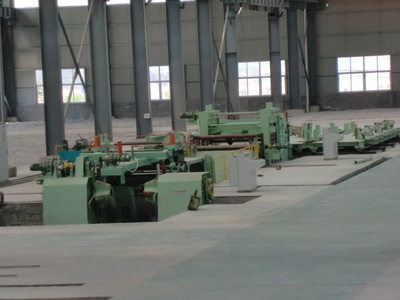

Cut to length Line Introduction
1. Brief introduction
This equipment is used for making steel strip sections from steel coils according to the demands of customers. Steel coils are firstly uncoiled and coarse flattened and fine flattened. The flattened strips will then be delivered to cut shear and cut to sections with required length. The final product is stacked in plate stackers.

2. Function
It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.

3. Process flow
Coil loading – uncoiling – strip end straightening – coarse leveler– Loop – vertical roller fine leveler – cut shear – plate stacker – delivery car
​
4. Machine parts in the working line
1)    Coil car
2)    Uncoiler
3)    Head straightener
4)    Coarse leveler
5)    Loop
6)    Vertical roller device
7)    Fine leveler
8)    Cut shear
9)    Delivery conveyor
10)    Plate stacker
11)    Hydraulic system
12)    Electric control system
13)    Bolts and buried parts
