These two sets of machines 2820×10 mm spiral pipe machine and 820×10 mm Spiral pipe machine  were  successfully put into production from now on. Our team successfully completed all work on this project with efficiency and professionalism.

2820 ×20 mm spiral pipe machine

• Coil width: 500-1550 mm
• Pipe O.D.: Φ610-Φ2820mm
• Pipe thickness: 6-20mm
• Pipe length: 8 - 12m

820×10 mm spiral pipe machine

• Coil width: 400-800 mm
• Pipe O.D.: Φ219-Φ820mm
• Pipe thickness: 4-10mm
• Pipe length: 8 -12m

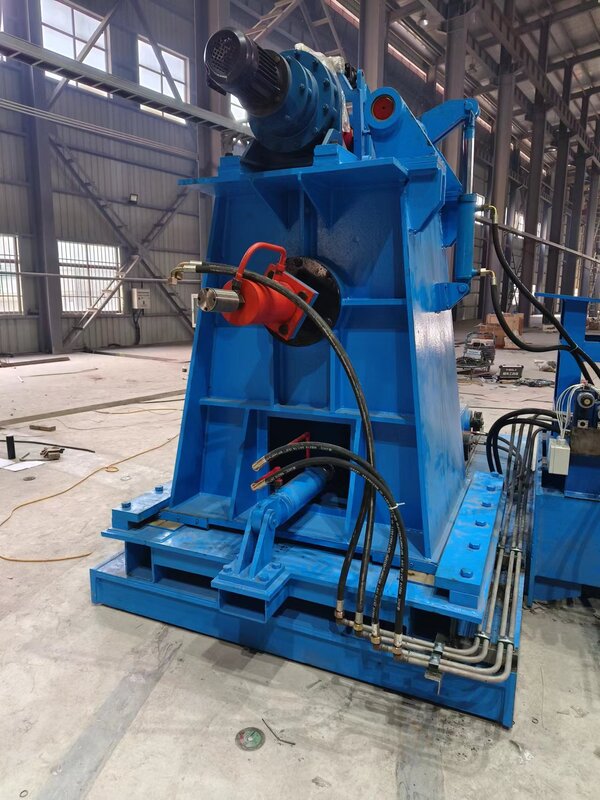

Equipment list in General: Uncoiler; Peeler ; Roll head straightening; Hydraulic vertical roller; Shear and butt welding device ;roll leveling machine; Delivery machine;Front bridge ;Guide plate ;Forming machine ; Inner welding device ;Outer welding device;Rear bridge ;Center support ;V-gate; Hydraulic system ; Electrical control system

Huaye is able to design, manufacure and commission the machine  according to your requirements, helping you start a project at a lowest possible investment.

Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe machine project. ​

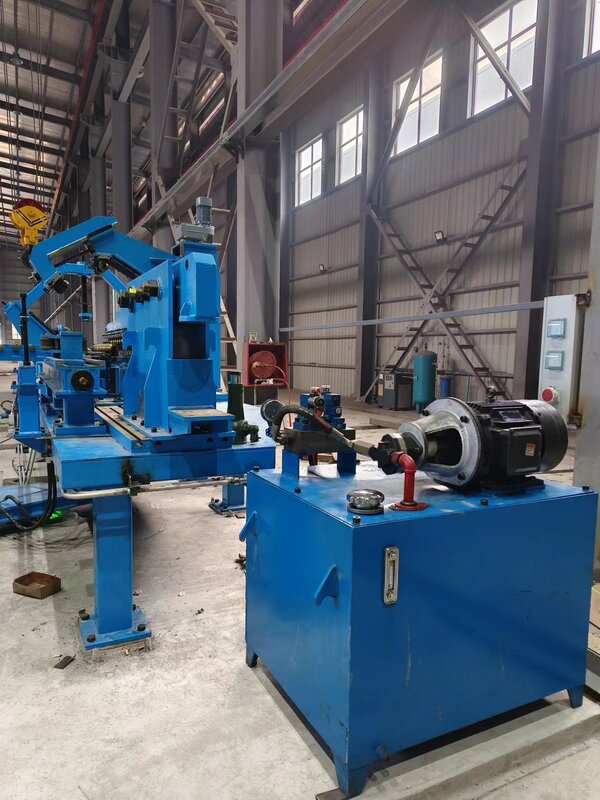

 The installation and commissioning of 820mm stainless steel spiral welded pipe machine have been successfully completed in in Nantong ,China.   It's used to produce stainless steel spiral welded pipes of max.O.D 820.The machines will be put into official production and start producing pipes soon.

General specifications:
Coil width: 500-1250 mm
Pipe O.D.: Φ219-Φ820mm
Pipe thickness: 5-12mm
Pipe length: 8 - 12m

With the operation of this equipment, it is anticipated that the production capacity and quality of stainless steel pipes will be significantly improved, making a greater contribution to meeting market demands.
Huaye is able to design, manufacure and commission the machine  according to your requirements, helping you start a project at a lowest possible investment.

Please contact yang.wang@huaye.us if any further interest regarding the spiral pipe machine project.

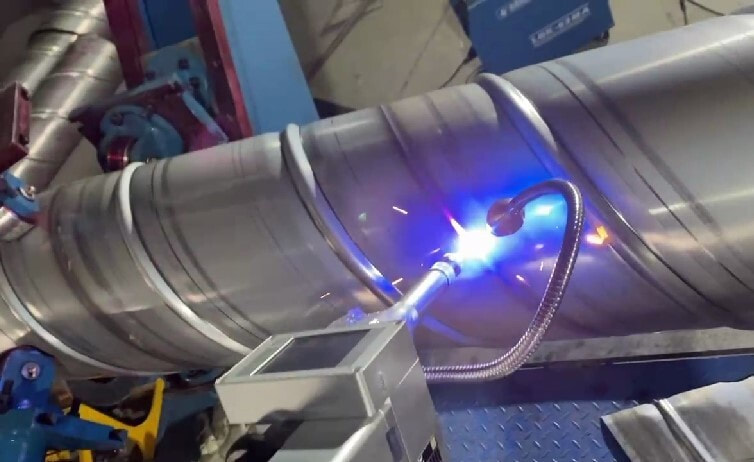

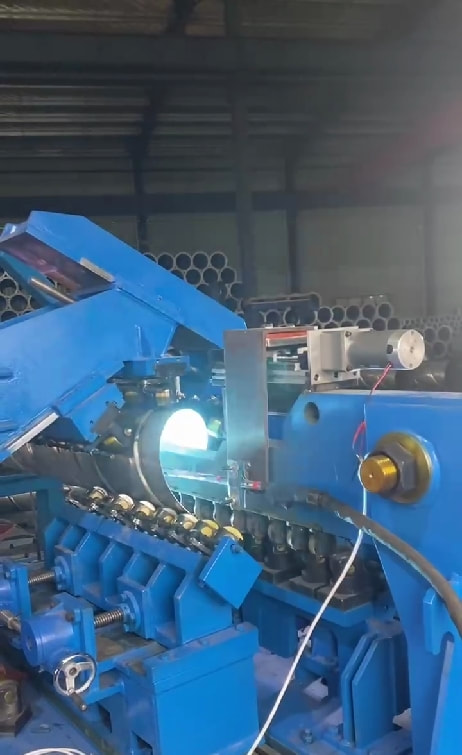

This stainless steel ribbed spiral welded pipe machine was made by HUAYE, it adopts laser welding technology, has been successfully installed and commissioned in Anhui,China. It has begun production from now on.

This machine is designed for the production of stainless steel helical ribbed spiral welded pipes.  These kind of pipes are widely used in many industries for the characteristics of corrosion resistance, high temperature resistance, and high strength.
Stainless steel ribbed spiral welded pipe machine plays an important role ​in industrial production and infrastructure construction.

It is one of our Huaye's mature and distinctive products. Contact us if you have any interest in a similar machine. yang.wang@huaye.us
